FEM Electrostatics

Examples from this field of application are shown in the following figures.

Modeling of a capacitive pressure Sensor

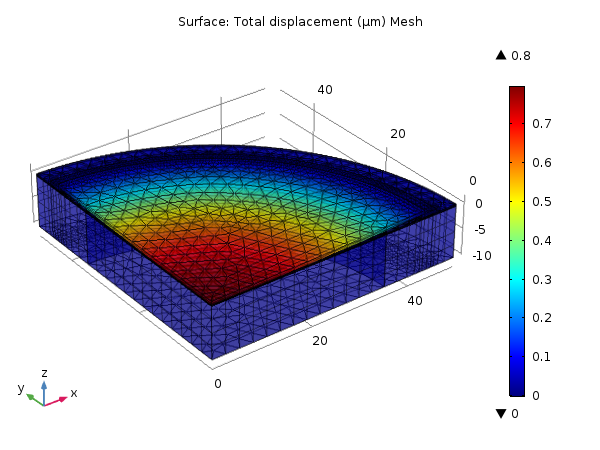

Deflection of a 1µm thin poly-silicon membrane with a diameter of 90µm at a pressure of 1bar.

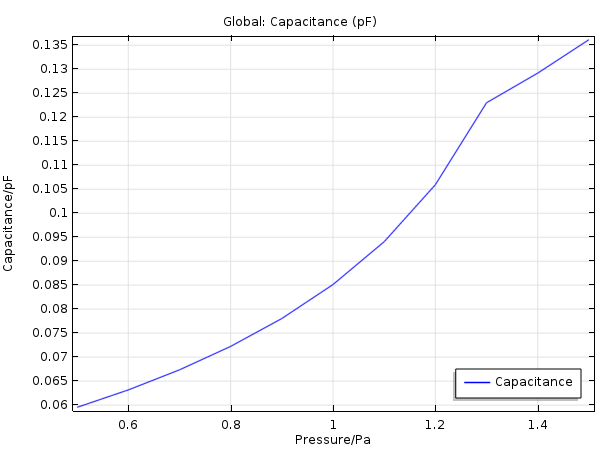

Capacitance vs ambient pressure. For pressure > 1.3bar the sensor operates in touch mode.
